SKU: OSD-OVC300-PAR
OSD OVC300300W Rotary Outdoor Volume Control, Impedance Matching and Weather Resistant, White or Grey
Use Code 'SAVEOSD'
- 300W Power Handling with Impedance Matching: Controls 1-8 pairs of speakers with optimized sound quality and minimal bass roll-off.
- Weather-Resistant Design: Built to withstand extreme temperatures (-50°F to +130°F), perfect for year-round outdoor use.
- Stylish Options: Available in Grey or White to complement your outdoor décor.
Elevate your outdoor audio experience with the OSD OVC300, a powerful 300W rotary volume control designed specifically for outdoor use. Featuring an easy-access impedance-matching jumper, you can adjust settings effortlessly without breaking the weatherproof seal. Enjoy clear, optimized sound with minimal bass roll-off and control 1-8 pairs of speakers simultaneously with built-in impedance matching.
Crafted with a durable, weather-resistant design, the OVC300 performs flawlessly in extreme temperatures ranging from -50°F to +130°F. The autoformer design ensures exceptional audio quality, while the 12-step rotary knob delivers precise volume adjustments. Available in sleek Grey or White, the unit blends seamlessly into any outdoor setting.
Warning: California's Proposition 65
Warning:
This product can expose you to chemicals, including vinyl chloride, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
- Volume Control Type: Outdoor 300W Impedance Matching Knob Style
- Power Handling: 300W Peak; 150W RMS Per Channel
- Frequency Response: 20Hz - 20kHz
- Total Attenuation: -54 dB (Max)
- Steps: 12 (Make Before Break)
- Impedance Matching for 1/2, 4, 6, or 8 Pairs of Speakers

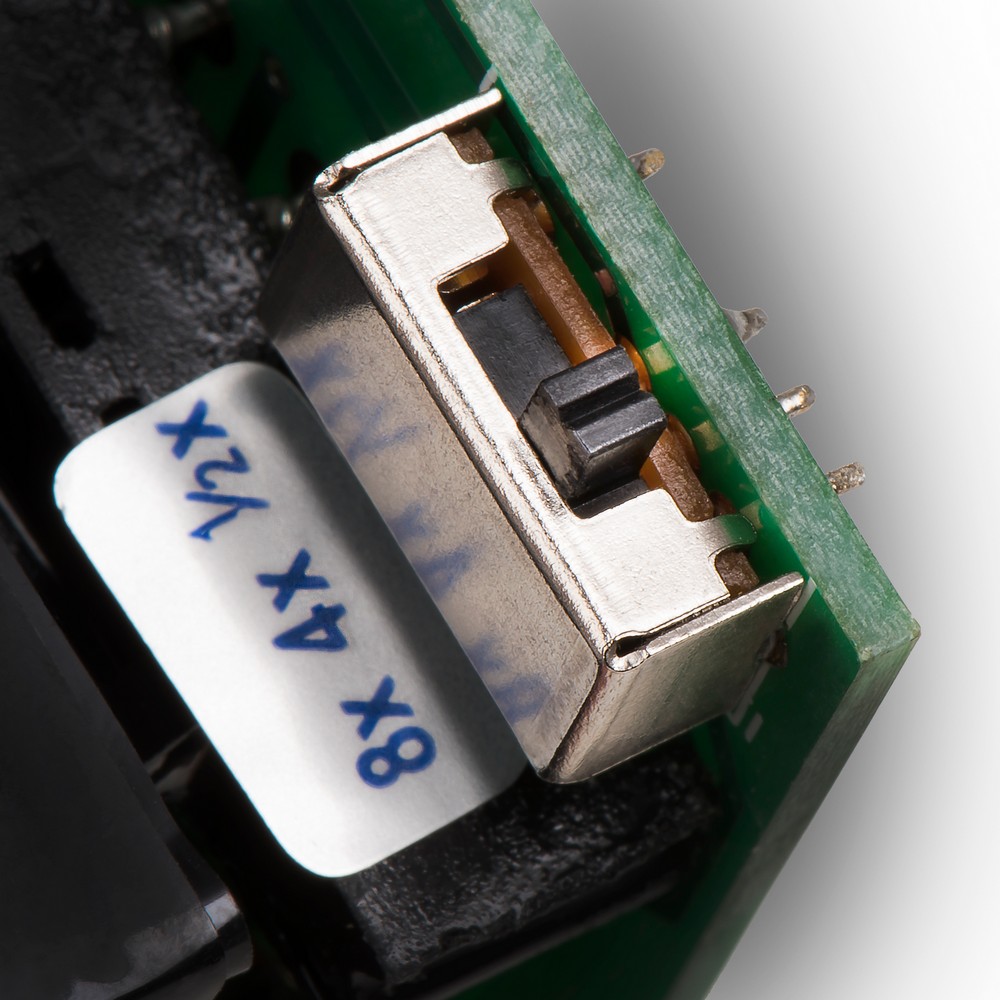

- Easy-Access Impedance-Matching Switch
- Wiring Requirement: Up to 14 Gauge Wire
- Weather-Resistant for Outdoor Use
- Can Withstand -50F / +130F Degree Weather
- Mounting Options: Use 3/4" PVC Conduit Pipe to Stand Alone or Mount to the Wall
- Unit Dimensions: (L x H x D) 3.25" x 4.37" x 3"
- Colors Available: Grey or White
- Warranty: 5 Years
View Product Information
65 Questions asked
Have a Questions?
What's on your mind?
james ackley • 12/17/2019, 2:17:43 PM
I have a side by side with 6 speakers on the rear top behind me and when riding I could not hear the music so I turned 2 of the speakers facing me but now its too loud so I am wanting to control the volume of those 2 front facing speakers so as I can turn them down alone. What do you recommend? I am looking at the OVC300 Outdoor Volume Control Self-Impedance, What do you think?
Customer Service • 12/17/2019, 2:17:43 PM
I have 6 separate speakers running off an amp Bazooka MA475D-B and I also have 2 sub woofers running off Amp Bazooka MA1600D-B. On the speakers they are housed in a mounted tube on the rack mounted on the bed. I have 2 of them facing the front and the rest facing the rear. Will this Volume Controller cause me to loose the quality of sound?
Erik • 12/17/2019, 2:17:43 PM
Hi there! I am currently running one pair of outdoor Polk Atrium 6 speakers off of zone 2 on my Yamaha RX-V679 receiver. I would like to add another pair of outdoor speakers for the yard to also run off of zone 2. I would also like volume control for each pair. How would I correctly go about doing this as I've heard to not run more than one pair of speakers off of a Zone 2? Is this the correct volume control that I would need and would I also need an additional amp to connect to zone 2? Thanks!
Customer Service • 12/17/2019, 2:17:43 PM
Hi Erik:
The best solution for you is to use our XMP 100 Digital Amplifier. Unlike our AMP120 which we do not recommend having more than a single pair of speakers playing at a time but the XMP-100 is 93% efficient so handles a 4 ohm load better than the AMP120. The OVC300 is the best choice for Volume Controls for your outdoor speakers and you will want to set the impedance matching to 1/2x for both controllers. The XMP-100 would connect to the Zone 2 pre amp output of the Receiver with an RCA stereo patch cord. Then you would run a four conductor speaker cable to each Volume Control and then two 2 conductor cables one to each Atrium speaker.
That should work for your application
TL/4341
Ken • 12/17/2019, 2:17:43 PM
I have a passive outdoor sub woofer that has 2 sets of wires coming out for the satellite speakers. The satellites are too loud and I want to put a volume control AFTER the sub to be able to turn the volume down on the satellites only. I have 2 pair of satellite speakers. Do I need one or two volume controls? Should this work for what I'm doing? thanks.
Customer Service • 12/17/2019, 2:17:43 PM
Hi Ken:
It depends on how much control you want. One Volume control will control both speakers equally, but a Volume Control for each pair will allow a little more control. Both will work for your application. Whether you use one or two Volume controls Impedance matching Setting will be 1/2X for either application you choose.
TL/4365
Kevin Wright • 12/17/2019, 2:17:43 PM
I have an Onkyo TX-NR646 and plan to utilize Zone 2 for a pair of speakers on the back deck. I currently haven't purchased anything yet so looking for advice on the best was to control the speakers on the deck. Using the line in input or just running speaker wire from zone 2?
thanks
Customer Service • 12/17/2019, 2:17:43 PM
Hi Kevin:
If you are just running a single pair of outdoor speakers you can connect ZONE2 speaker Level output as long as you are only running a 5.1 system. But if you are planning a 7.1 or 7.2 system the ZONE2 speaker level will not work and you will need to go to plan B using the Pre amp outputs (the two RCA jacks next to the two Subwoofer outputs Pre-Out). Zone 2 is labeled Line Out. Two choices depending if you are planning more than a single pair of speakers. First our XMP100 Class D amplifier can be used to control one or even two pair of speaker featuring Speaker A and Speaker B for your outdoors. The second option is to add a AMP200 especially if you might plan to add other speakers throughout the house. You can use our SVC300 Volume Control with either a single pair as you already planned (so you can control at the speakers manually) or use to control two pair, or even two volume controls one for each pair. Just depends on how much control you will need. Note you never can have too much power so if your budget allows it the AMP200 would be best choice.
TL/4368
Kurt • 12/17/2019, 2:17:43 PM
Thanks so much for responding to questions. I have a Control4 Audio Matrix (C4-16ZAMSv3-B) and a Control4 NonMatrix 8 Zone Power Amplifier (32 Channels). One zone includes two EpisodeĀ® Landscape Series 360Ā° Speaker. I would like add a volume control to just one of the two speakers. Can you please make a recommendation on the appropriate volume control. Thanks
Customer Service • 12/17/2019, 2:17:43 PM
Hi Kurt:
You do not sound like you are worrying about Impedance Matching so I would recommend the OVC305R Resister based Outdoor volume control. It has a broader Frequency Response with no high or low end roll off. You also can turn the Volume control to full off/disconnect when turning the volume knob all the way counter clockwise until it stops. This a Break before Make design so there is a disconnect between clicks making sure the resistors do not short out. A true audiophile sounding volume control. Perfect for you application.
Good luck
TL/4897
