SKU: OSD-AP520-PAR

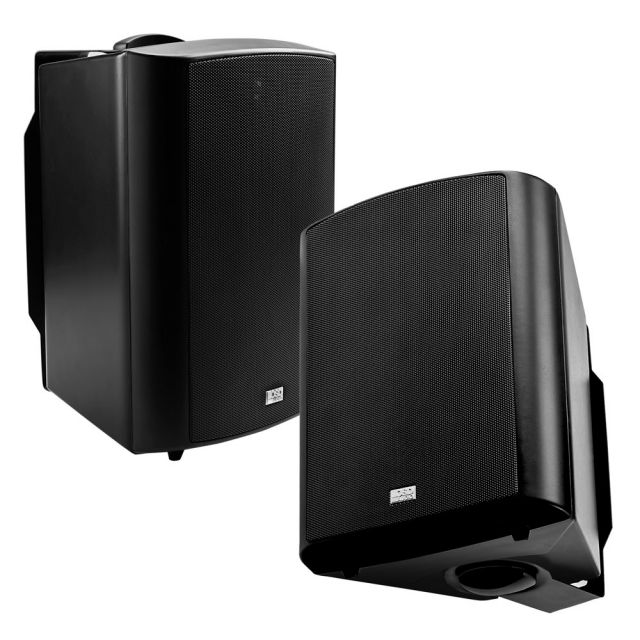

OSD AP5205.25" 2-Way Outdoor Patio Speaker Pair w/ Optional 70V Tap, IP54 Rated, White or Black
Introducing the AP520 Outdoor Patio Speakers, the perfect solution for high-quality sound in any outdoor area. These speakers boast a sleek and modern design, available in black and white, and offer unbeatable value without sacrificing audio quality. The compact size is ideal for outdoor spaces of up to 500 square feet, making them a versatile addition to your patio, deck, or overhang.
Built to withstand the elements, the AP520 features a weather-resistant ABS polymer enclosure and rust-resistant aluminum grille. The stainless steel hardware and gold-plated five-way binding posts ensure durability, and the IP54 rating provides protection from dust and water splashes. The wide frequency response of 50Hz to 22kHz +/- 10dB and power handling capability of 20-120W peak allows for a full range of sound to be heard. Installation is a breeze with the included 'U' bracket.
Features:
- All-weather design withstands even harsh climates
- Stainless steel hardware for long-lasting durability
- 5.25" Polypropylene Woofer for excellent bass
- Gold-plated 5-way Binding Posts
- Mounting Brackets included (note: screws not included due to varying types of mounting surfaces)
- Powder-coated rust-resistant aluminum grille
Warning: California's Proposition 65
Warning:
This product can expose you to chemicals, including vinyl chloride, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
- Speaker Type: 5.25" Indoor / Outdoor Patio Speaker
- IP54 Rated

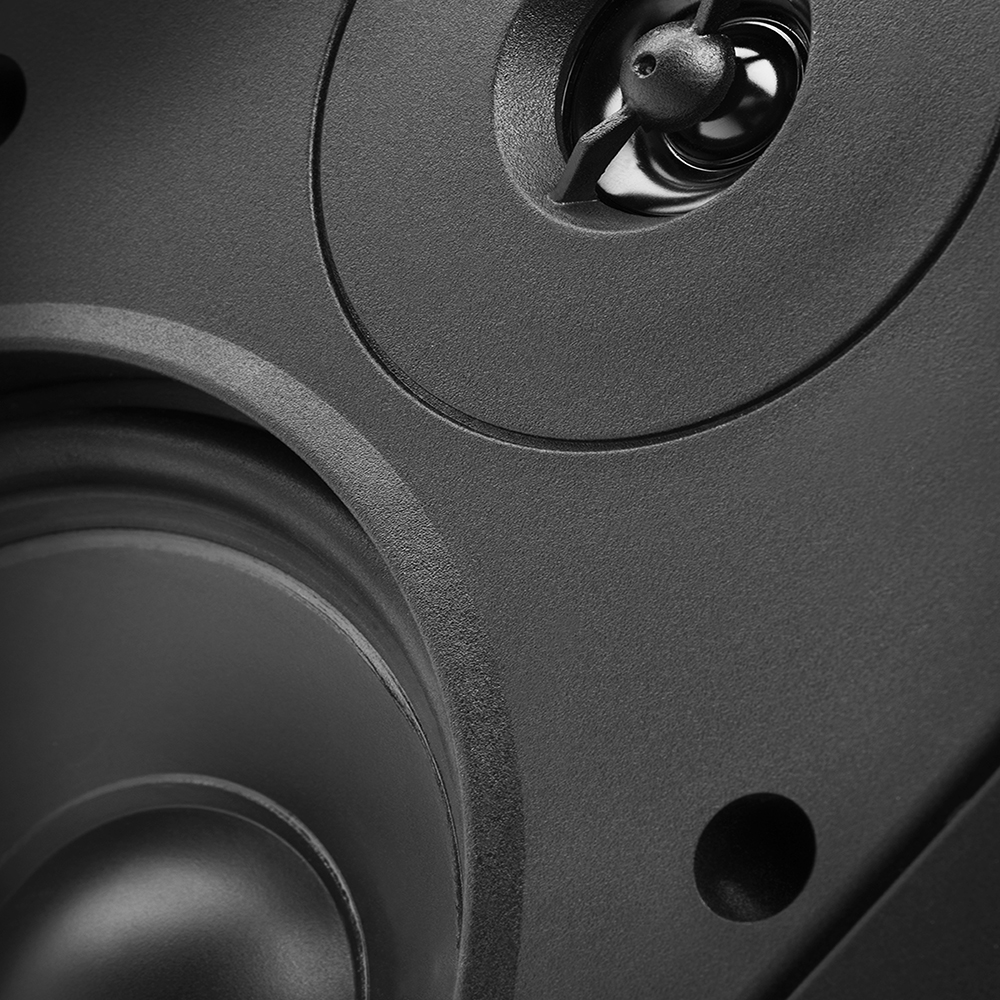

- Woofer: 5.25" Polypropylene Cone
- Tweeter: 1/2" PEI Tweeter
- Frequency Response: 50Hz to 22kHz +/- 10dB
- Power handling: 20-120W Peak
- Sensitivity: 88 dB
- Impedance: 8 Ohms w/ Optional 70V Transformer Built-In
- 70V Tap: 4W, 8W, 16W and 30W

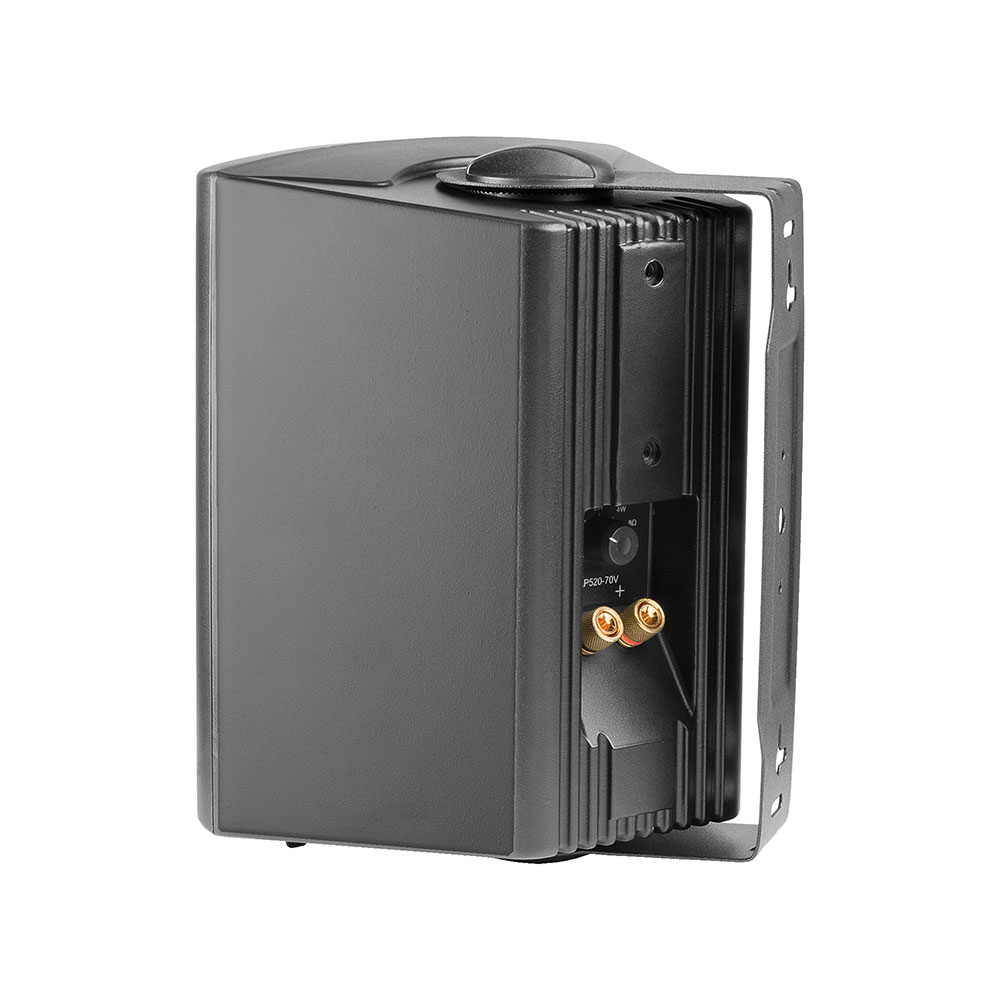

- Gold-Plated Spring Loaded Binding Posts
- Powder-coated Rust Resistant Aluminum Grille and Composite Cabinet

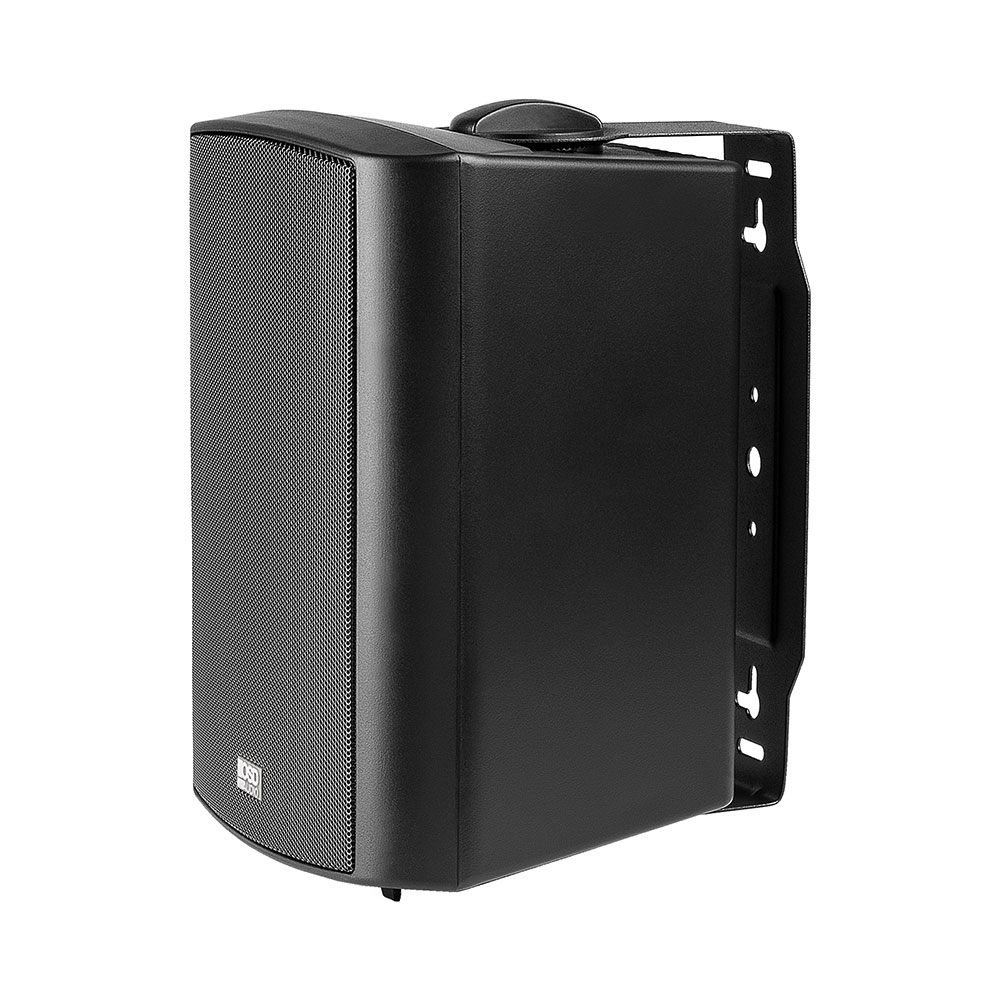

- 'U' Bracket

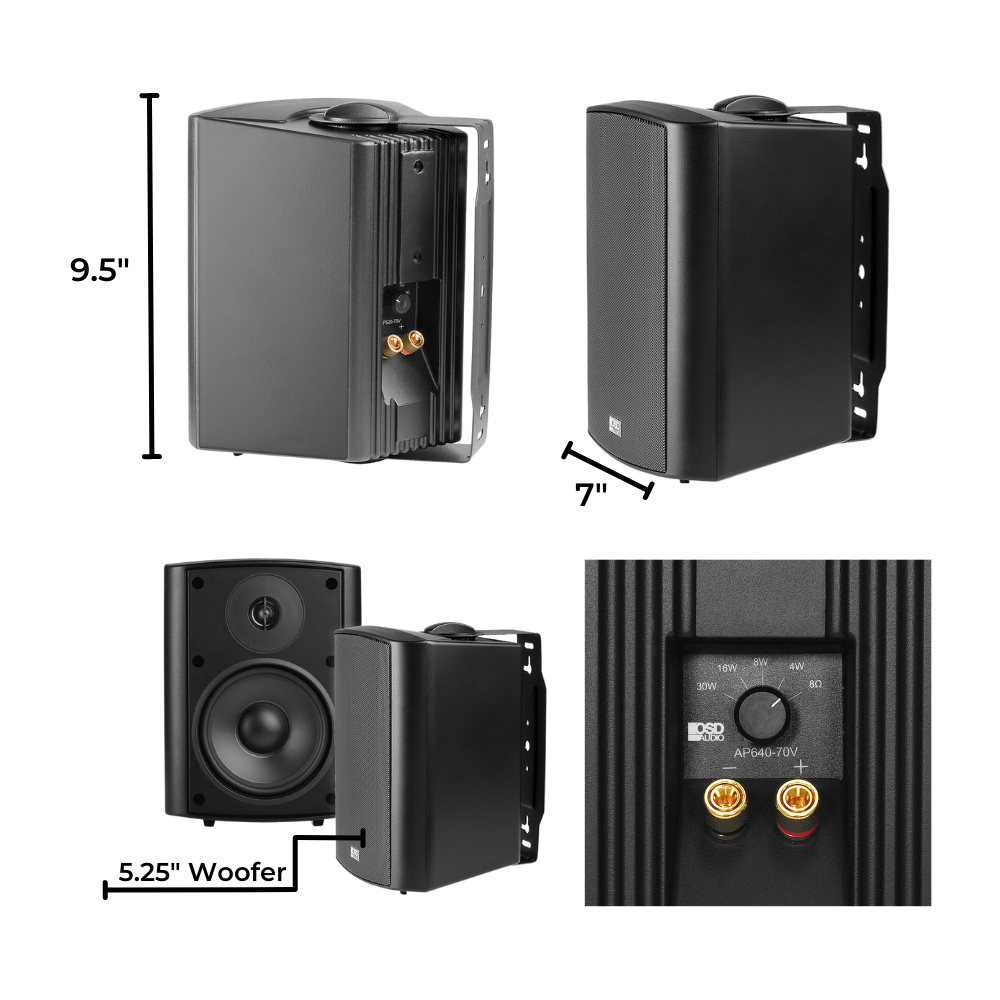

- Unit Dimensions: (L x H x D) 9.5" x 7" x 6.4"
- Sold As: Pair
- Colors: Black or White
- Weight: 7 lbs Each Speaker
- Warranty: 1 year
View Owner's Manual
36 Questions asked
Have a Questions?
What's on your mind?
Edward J Renas • 12/17/2019, 2:17:43 PM
I noticed some complaints in the reviews in regards to mounting the AP520 horizontally, has the issue been resolved? These would be mounted horizontally under an eave with the speaker facing out and slightly downward.
Customer Service • 12/17/2019, 2:17:43 PM
Hi Edward:
I have not heard of any issue where the product has been returned due to this issue. The two reviews where it was brought up had issues but they did not return the product. I personally recommend the step up from the AP520 to the AP525 especially for horizontal mounting since the AP525 bracket also tilts as well as swivels so you can toe the speaker inwards and down. The ideal distance between right and left speaker should equal the distance to the sweet spot or prime listening spot/area. The distance from each speaker to the sweet spot should equal the distance you mount them apart left and right. Like a perfect triangle with three equal sides. If they have to be mounted a little farther apart you can make sure the tweeters are on the inside.
TL/5077
larry • 12/17/2019, 2:17:43 PM
do these work with RCA type plug's? If not do you have any outdoor speaker's that will?
Thanks'
Larry
Customer Service • 12/17/2019, 2:17:43 PM
Hi Larry:
These connectors are binding posts featured on the back of the AP520 speaker that will not work with RCA connectors especially if they are from a preamplified signal.
TL/
Guy Joanisse • 12/17/2019, 2:17:43 PM
How much shipping for 5 pairs to my address
Customer Service • 12/17/2019, 2:17:43 PM
Hi Guy:
You can go online and place an order in the cart, and you can get a quote on the freight and decide if it is acceptable. We also sell through AMAZON for Canada as well. Or you can contact our distributor in Vancouver: Audio Video Supplies Importer
sales@avsimporter.com
Tel: 604-541-6034
www.avsimporter.com
And ask them for a quote as well. Both AMAZON and out BC warehouse do not honor the 10% Spring discount. We do not have free freight to Canada when buying directly from us.
Good luck
TL/5500
Diane Rosemond • 12/17/2019, 2:17:43 PM
I have a pair of outdoor speakers. Can I adjust the volume on the speaker itself? Or, do I need to get a volume control for outside?
Customer Service • 12/17/2019, 2:17:43 PM
Hi Diane:There is no built-in volume control on any of our passive patio speakers. We do recommend adding one of our OVC300 outdoor Impedance Matching Volume Controls. Or if you are only looking for a single Volume controls with no plans to add additional speakers we recommend using our OVC305R (resistor based unit with no Impedance matching Capability). In either case, these are stereo Volume controls with four input connections (right and left channels each +/-). You wire it in line with the wires you have already run or are -planning to use. If you are in the planning stages, you will run a single four-conductor cable (like our 16/4) to the Volume control then two (2) conductor cables (like our 16/2) one to each speaker. They will work if you have already run two (2) conductor cables as well. If your runs are over 80 feet, then we would recommend going with 14 gauge cables. All our cables are CL3 rated and approved for direct burial. Please feel free to contact me if you need additional help; tim@sdaudio.com.TL/5533
Victoria • 12/17/2019, 2:17:43 PM
How can i hook these speakers up to my Samsung tv
Customer Service • 12/17/2019, 2:17:43 PM
HiVictoria:Youwill need an external amplifier. All Audio outputs on the SAMSUNG TV are preamponly. There are two choices one analog (3.5mm stereo headphone jack) and theother Digital Fiber Optic. There is an issue with SAMSUNG TV not having aVariable output so you can not control the volume with your SAMSUNG Remote. Ouroptimum solution is adding our NERO XD Streamer Integrated Power Amplifier withFiber Optic Input so can be connected directly to the Digital Fiber Opticoutput of the TV. It would be a native digital signal transmitted to the NEROXD Streamer where it would convert to Analog through the High-Quality DAC(Digital to Analog Converter). It supports 16/24-bit192kHz typically higher qualitythan those DACs found in Standard TV. The NERO is compact and includes a WallMounting bracket so you can mount the Amp on the wall behind the TV. The NEROXD Streamer features additional sources like a free app-driven Wi-Fi Link and aBluetooth Receiver as well as the Digital Fiber Optic and Analog line-input.There is also a dedicated Subwoofer output so a Powered Subwoofer can be easilyadded and controlled by the IR Remote Control that comes with the NERO AMP. TheIR Remote allows you to select the sources, control the volume, and pause/play.The IR codes are available to program a Universal Remote. I will send youadditional info to your email address on the NERO XD Streamer.TL/5620
